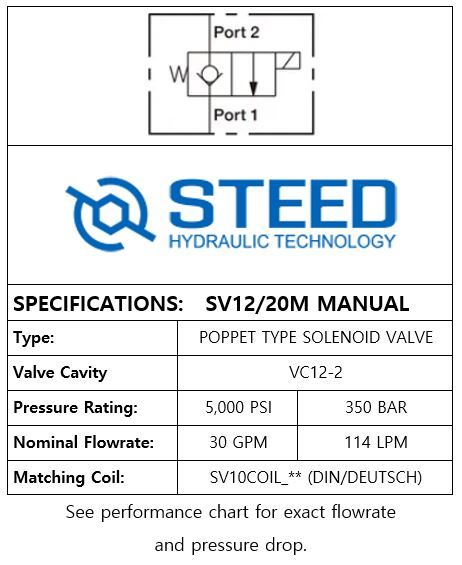

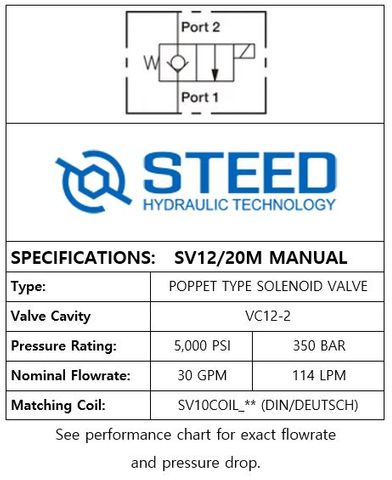

SV12-20M • SOLENOID VALVE ON/OFF 3-WAY 2-POSITION • SAE-12-2 • 350 BAR • 114 LPM • STEED

Description

THIS ON/OFF 3-WAY 2-POSITION TYPE (MANUAL OVERRIDE) SOLENOID VALVE USES A C-12-2 CAVITY, WITH OPERATING PRESSURE UP TO 350 BAR AND A FLOW CAPACITY OF 114 LPM. WHEN DE-ENERGIZED, IT ACTS AS A CHECK VALVE, ALLOWING FLOW FROM PORT 1 TO PORT 2, WHILE BLOCKING FLOW FROM PORT 2 TO PORT 1. WHEN ENERGIZED, THE VALVES POPPET LIFTS TO OPEN THE PORT 2 TO PORT 1 FLOW PATH, WHILE FLOW FROM PORT 1 TO PORT 2 IS SEVERELY RESTRICTED. BRAND: STEED.
