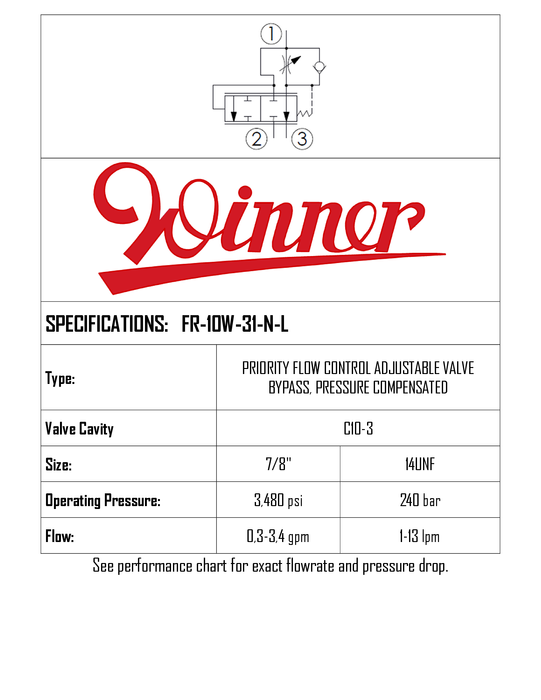

FR10W31NL • PRIORITY FLOW CONTROL VALVE, BYPASS/PRESSURE COMPENSATED • C-10-3 • 240 BAR • 26 LPM • WINNER
FR10W31NL
Description
This is a direct-operated, spool type, bypass/ pressure compensated priority flow control valve. Regardless of system pressure or load, the valve maintains a constant flow from port 1 to port 3. Input flow supplied to port 1 in excess of the priority output at port 3 is bypassed to port 2. The regulated flow decreases with clockwise rotation of the adjusting screw. Flow from port 3 to port 1 is limited by the diameter of the control orifice and is not pressure compensated.
Stock Level:
In Stock
Price:
$209.00
