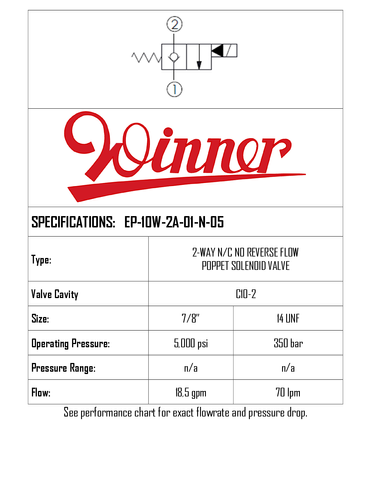

EP10W2A01N05 • SOLENOID VALVE PILOT-OPERATED, POPPET TYPE, 2-WAY 2-POSITION, NORMALLY CLOSED • C-10-2 • 350 BAR • 70 LPM • WINNER

Description

THIS SOLENOID VALVE PILOT-OPERATED, POPPET TYPE, 2-WAY 2-POSITION, NORMALLY CLOSED FEATURES A C-10-2 CAVITY, OPERATES UP TO 350 BAR, AND PROVIDES A FLOW CAPACITY OF 70 LPM. WHICH USES TO AS BLOCKING OR LOAD HOLDING DEVICE IN HIGH PRESSURE APPLICATION. THIS VALVE IS SIMILAR TO A CHECK VALVE WHEN DE-ENERGIZED. ALLOW FREE FLOW FROM PORT 1 TO PORT 2 AND BLOCK FLOW FROM PORT 2 TO PORT 1. IN ENERGIZED CONDITION, THIS VALVE IS ALLOWED FLOW FROM PORT 2 TO PORT 1, BUT IT IS DIFFICULT TO PASS THAT FLOW FROM PORT 1 TO PORT 2. BRAND: WINNER.
