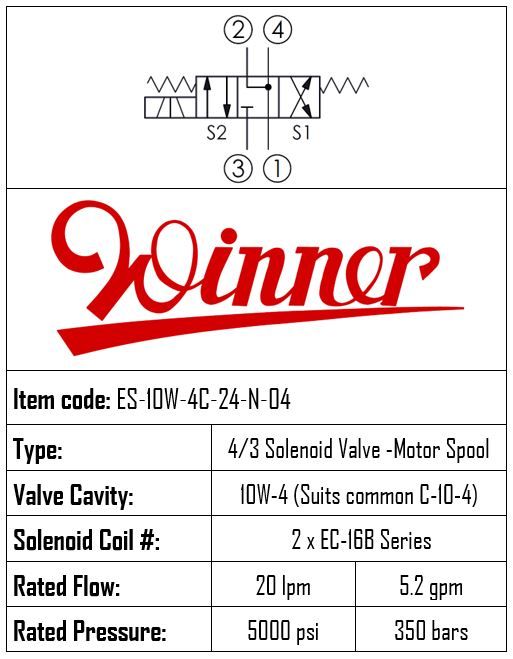

ES10W4C24N04 • SOLENOID VALVE DIRECT-ACTING, SPOOL TYPE, 4-WAY 3-POSITION • C-10-4 • 350 BAR • 20 LPM • WINNER

Description

THIS SOLENOID VALVE DIRECT-ACTING, SPOOL TYPE, 4-WAY 3-POSITION FEATURES A C-10-4 CAVITY, OPERATES UP TO 350 BAR, AND PROVIDES A FLOW CAPACITY OF 20 LPM. WHEN BOTH COILS ARE DE-ENERGIZED, PORT 1, PORT 2 AND PORT 4 ARE OPEN TO EACH OTHER WHILE PORT 3 IS BLOCKED. WHEN S1 IS ENERGIZED, IT ALLOWS FLOW FROM PORT 2 TO PORT 1 AND FROM PORT 3 TO PORT 4. WHEN S2 IS ENERGIZED, IT ALLOWS FLOW FROM PORT 3 TO PORT 2 AND FROM PORT 4 TO PORT 1. BRAND: WINNER.
