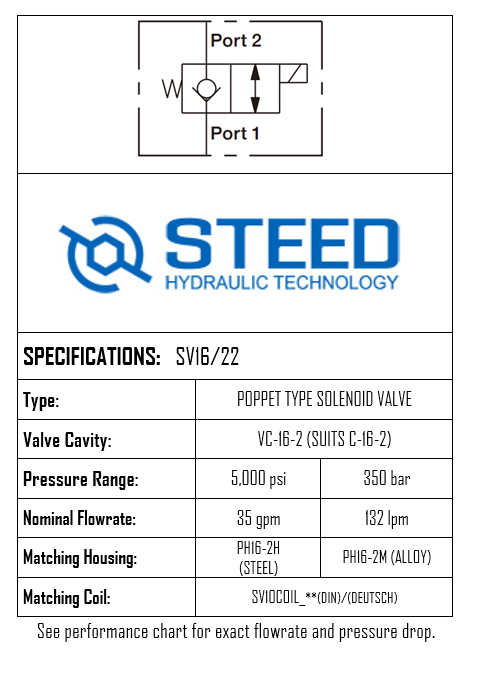

SV16/22 • SOLENOID VALVE ON/OFF 2-WAY 2-POSITION • SAE-16-2 • 350 BAR • 132 LPM • STEED
SV16/22
Description
THIS ON/OFF 2-WAY 2-POSITION SOLENOID VALVE USES A SAE-16-2 CAVITY, WITH OPERATING PRESSURE UP TO 350 BAR AND A FLOW CAPACITY OF 132 LPM. WHEN SOLENOID COIL IS DE-ENERGIZED, THIS VALVE ALLOWS FLOW FROM PORT 1 TO 2 AND REVERSE FLOW FROM 2 TO 1 IS BLOCKED. WHEN SOLENOID COIL IS ENERGIZED, ALOWS FLOW BETWEEN PORTS 2 AND 1 AND REVERSE. BRAND: STEED.
Stock Level:
In Stock
Price:
$334.52
