SV16/20M • SOLENOID VALVE ON/OFF 2-WAY 2-POSITION • SAE-16-2 • 350 BAR • 132 LPM • STEED
SV16/20M
Description

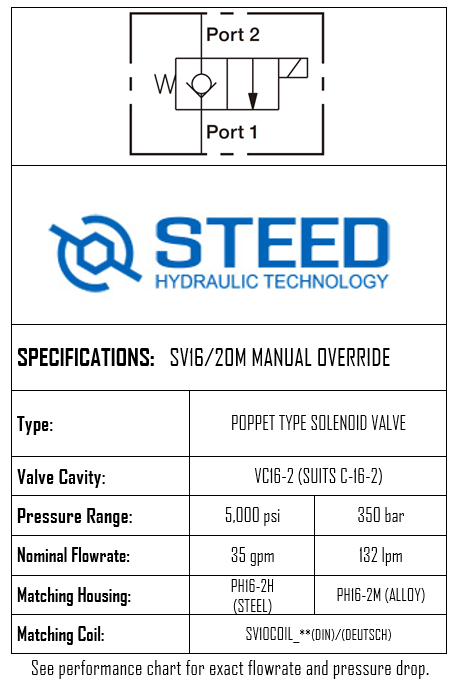

THIS ON/OFF 2-WAY 2-POSITION (MANUAL OVERRIDE) SOLENOID VALVE USES A C-16-2 CAVITY, WITH OPERATING PRESSURE UP TO 350 BAR AND A FLOW CAPACITY OF 132 LPM. WHEN DE-ENERGIZED, IT ACTS AS A CHECK VALVE, ALLOWING FLOW FROM PORT 1 TO PORT 2, WHILE BLOCKING FLOW FROM PORT 2 TO PORT 1. WHEN ENERGIZED, THE VALVES POPPET LIFTS TO OPEN THE PORT 2 TO PORT 1 FLOW PATH, WHILE FLOW FROM PORT 1 TO PORT 2 IS SEVERELY RESTRICTED. BRAND: STEED.
Stock Level:
In Stock
Price:
$352.73
