SV10/34 • SOLENOID VALVE ON/OFF 3-WAY 2-POSITION • SAE-10-3 • 255 BAR • 23.0 LPM • STEED
SV10/34
Description

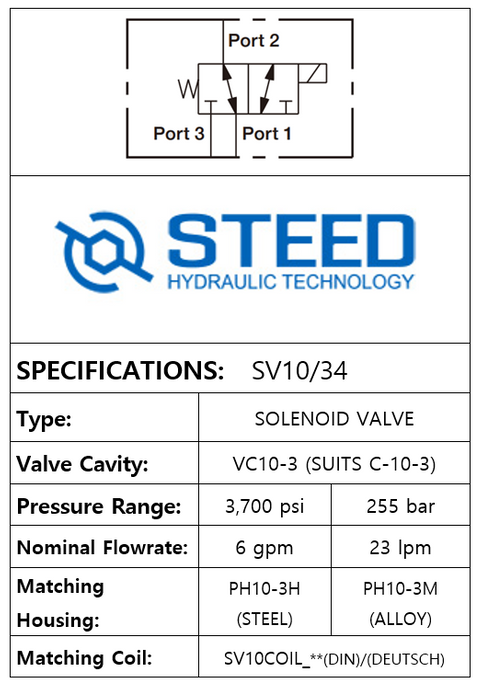

THIS ON/OFF 3-WAY 2-POSITION SOLENOID VALVE USES A SAE-10-3 CAVITY, WITH OPERATING PRESSURE UP TO 255 BAR AND A FLOW CAPACITY OF 23.0 LPM. WHEN DEENERGIZED, IT ALLOWS FLOW FROM PORT 2 TO PORT 1 AND REVERSE, WHILE BLOCKING FLOW AT PORT 3. WHEN ENERGIZED, THE CARTRIDGES SPOOL SHIFTS TO OPEN FROM PORT 3 TO PORT 2 AND REVERSE, WHILE BLOCKING FLOW OUT PORT 1. BRAND: STEED.
Stock Level:
In Stock
Price:
$256.68
