SV10/31 • SOLENOID VALVE ON/OFF 3-WAY 2-POSITION • SAE-10-3 • 255 BAR • 22.0 LPM • STEED
SV10/31
Description

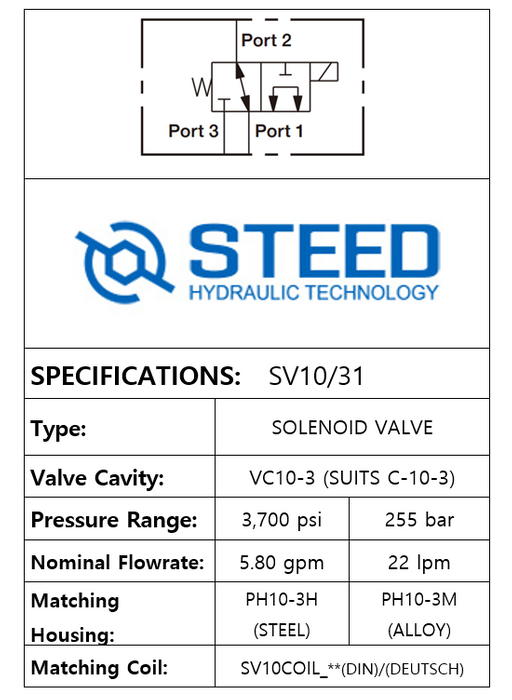

THIS ON/OFF 3-WAY 2-POSITION SOLENOID VALVE USES A SAE-10-3 CAVITY, WITH OPERATING PRESSURE UP TO 255 BAR AND A FLOW CAPACITY OF 22.0 LPM. WHEN DEENERGIZED, IT ALLOWS FLOW FROM PORT 2 TO PORT 1 AND REVERSE, WHILE BLOCKING FLOW AT PORT 3. WHEN ENERGIZED, THE CARTRIDGES SPOOL SHIFTS TO OPEN FROM PORT 3 TO PORT 1, WHILE BLOCKING FLOW OUT PORT 2. BRAND: STEED.
Stock Level:
Contact us for stock availability
Price:
$256.68
