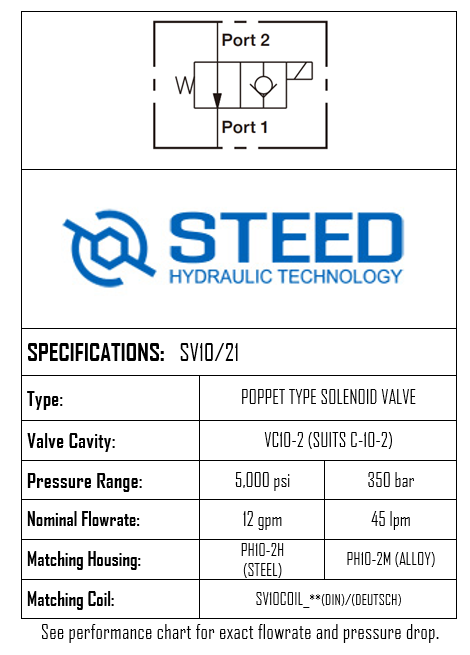

SV10/21 • SOLENOID VALVE 2 WAY 2 POSITION, NORMALLY OPEN • SAE-10-2 • 350 BAR • 57.0 LPM • STEED
SV10/21
Description
THIS 2 WAY 2 POSITION, NORMALLY OPEN SOLENOID VALVE USES A SAE-10-2 CAVITY, WITH OPERATING PRESSURE UP TO 350 BAR AND A FLOW CAPACITY OF 57.0 LPM. WHEN DE-ENERGIZED, IT ALLOWS FLOW FROM 2 TO 1. FLOW FROM 1 TO 2 IS SEVERELY RESTRICTED. WHEN ENERGIZED, THE VALVES POPPET CLOSES ON ITS SEAT, BLOCKING FLOW FROM 2 TO 1. THE CARTRIDGE WILL ALLOW 1 TO 2 FLOW AFTER OVERCOMING THE SOLENOID FORCE. BRAND: STEED.
Stock Level:
In Stock
Price:
$256.68
