SV08/34 • SOLENOID VALVE ON/OFF 3 WAYS 2 POSITIONS • SAE-08-3 • 255 BAR • 11.0 LPM • STEED
SV08/34
Description

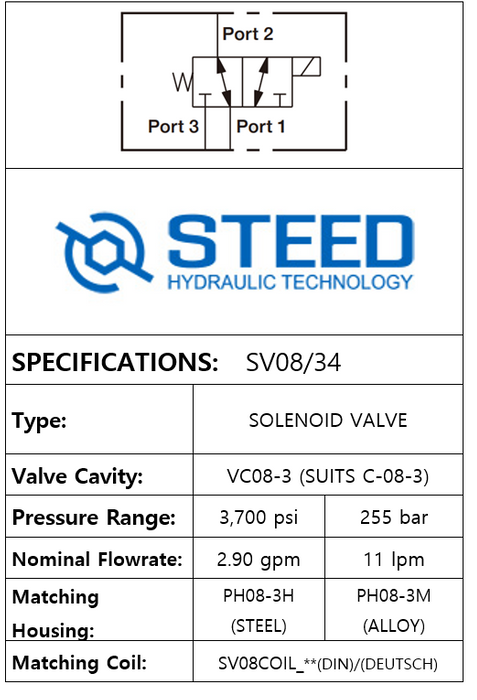

THIS ON/OFF 3 WAYS 2 POSITIONS SOLENOID VALVE USES A (SPOOL TYPE) SAE-08-3 CAVITY, WITH OPERATING PRESSURE UP TO 255 BAR AND A FLOW CAPACITY OF 11.0 LPM. WHEN DEENERGIZED, IT ALLOWS FLOW FROM PORT 2 TO PORT 1, WHILE BLOCKING FLOW AT PORT 3. WHEN ENERGIZED, THE CARTRIDGES SPOOL SHIFTS TO OPEN FROM PORT 3 TO PORT 2, WHILE BLOCKING FLOW OUT PORT 1. BRAND: STEED.
Stock Level:
Contact us for stock availability
Price:
$182.99
