EMDV-10-N-4D-0-00 • SOLENOID VALVE 4/2 DIRECT ACTING, SPOOL TYPE • C-10-4 • 350 BAR • 30 LPM • BUCHER

Description

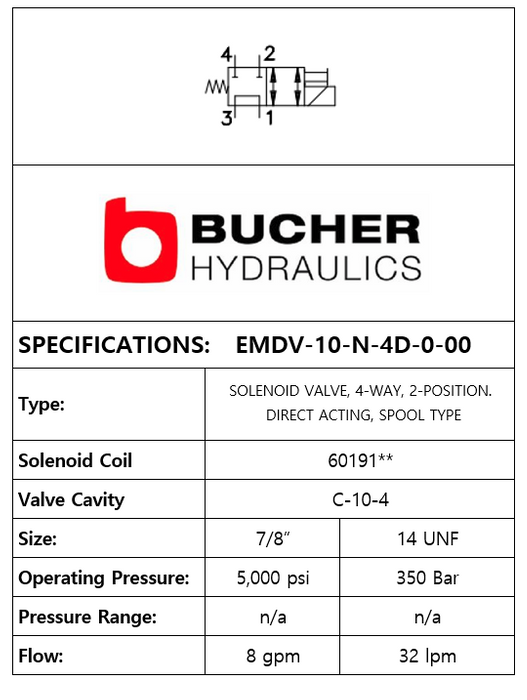

THIS 4/2 DIRECT ACTING, SPOOL TYPE SOLENOID VALVE FEATURES A C-10-4 CAVITY, OPERATES AT 350 BAR, AND HANDLES A FLOW CAPACITY OF 30 LPM. WHEN SOLENOID COIL IS DE-ENERGIZED, THIS VALVE ALLOWS FLOW BETWEEN PORTS 1 AND 3, NO FLOW TO PORTS 2 AND 4. WHEN SOLENOID COIL IS ENERGIZED, THE SPOOL IN THIS VALVE SHIFTED AND ALLOWS FLOW BETWEEN PORTS 1 AND 2, PORTS 3 AND 4. MANUAL OPERATOR STANDARD: PUSH IN AND HOLD A SMALL PLUNGER ON TOP OF THE VALVE WITH A SCREW DRIVER OR A SIMILAR PLUNGER SMALLER THAN .188" DIA. BRAND: BUCHER.
