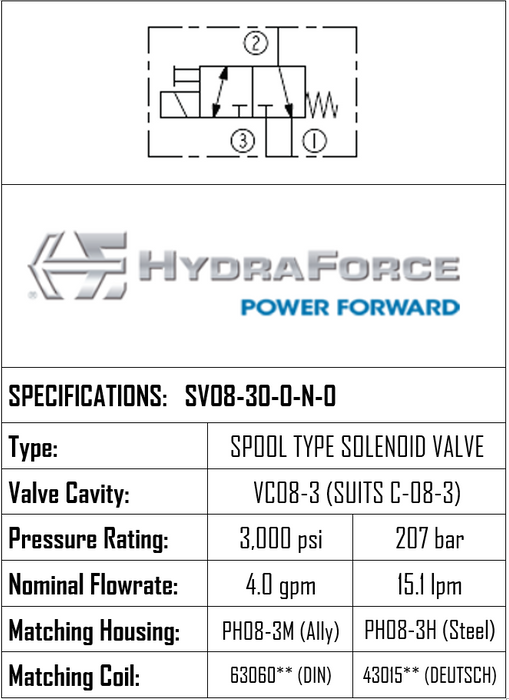

SV08-30 • SOLENOID VALVE 3 PORT 2 POSITION, DIRECT-ACTING, SPOOL TYPE • C-8-3 • 207 BAR • 15.1 LPM • HYDRAFORCE
SV08-30
Description
THIS SOLENOID VALVE 3 PORT 2 POSITION, DIRECT-ACTING, SPOOL TYPE FEATURES A C-8-3 CAVITY, OPERATES UP TO 207 BAR, AND HAS A FLOW CAPACITY OF 15.1 LPM. WHEN DEENERGIZED, THE SV08-30 ALLOWS FLOW FROM PORT 2 TO PORT 1, WHILE BLOCKING FLOW AT PORT 3. WHEN ENERGIZED, THE CARTRIDGES SPOOL SHIFTS TO OPEN FROM PORT 3 TO PORT 2, WHILE BLOCKING FLOW OUT PORT 1. WHILE PORT 1 MAY BE FULLY PRESSURIZED, IT IS NOT INTENDED TO BE USED AS THE INLET BRAND: HYDRAFORCE.
Stock Level:
In Stock
Price:
$288.00
