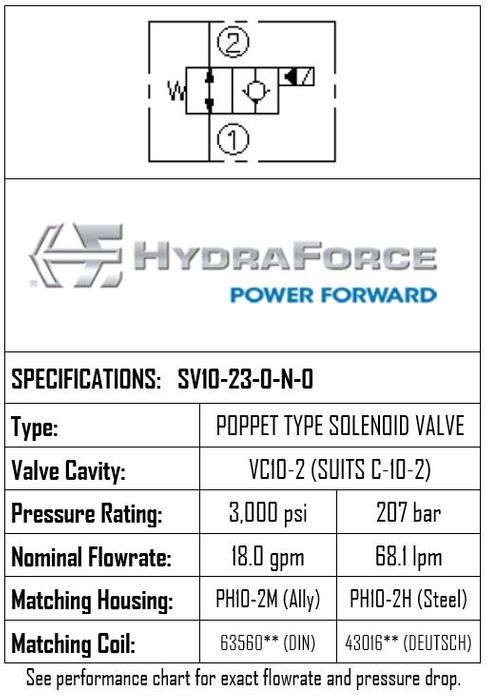

SV10-23-0-N-0 • SOLENOID VALVE 2 WAY 2 POSITION, NORMALLY OPEN, POPPET-TYPE • C-10-2 • 207 BAR • 68.1 LPM • HYDRAFORCE
SV10-23-0-N-0
Description
THIS 2 WAY 2 POSITION, NORMALLY OPEN, POPPET-TYPE SOLENOID VALVE USES A C-10-2 CAVITY, WITH OPERATING PRESSURE UP TO 207 BAR AND A FLOW CAPACITY OF 68.1 LPM. WHEN DE-ENERGIZED, IT ALLOWS BIDIRECTIONAL FLOW FROM PORT 2 TO PORT 1. WHEN ENERGIZED, THE VALVE'S POPPET CLOSES TO BLOCK FLOW FROM PORT 2 TO PORT 1. IN THIS MODE, THE CARTRIDGE ALLOWS FREE REVERSE FLOW FROM PORT 1 TO PORT 2 AFTER OVERCOMING THE SOLENOID FORCE (REQUIRES 50 TO 150 PSI [3.4 TO 10.3 BAR]) BRAND: HYDRAFORCE.
Stock Level:
Pre-order
Price:
$205.90
