SV08-40 • SOLENOID VALVE 4 WAY, 2 POSITION, DIRECT-ACTING SPOOL TYPE • C-8-4 • 207 BAR • 11.4 LPM • HYDRAFORCE
SV08-40
Description

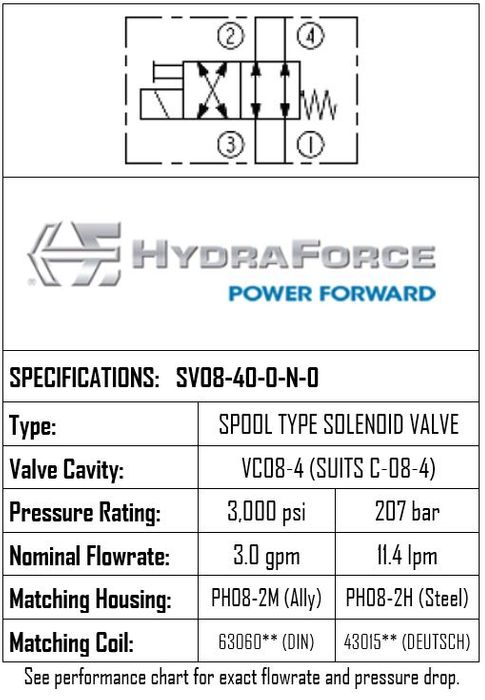

THIS SOLENOID VALVE 4 WAY, 2 POSITION, DIRECT-ACTING SPOOL TYPE FEATURES A C-8-4 CAVITY, OPERATES UP TO 207 BAR, AND HAS A FLOW CAPACITY OF 11.4 LPM. WHEN DE-ENERGIZED, THE SV08-40X FLOW PATHS ARE PORT 3 TO PORT 2, AND PORT 4 TO PORT 1. WHEN ENERGIZED, THE VALVE'S SPOOL SHIFTS TO OPEN PORT 3 TO PORT 4, AND PORT 2 TO PORT 1. ALL PORTS ARE OPEN AT CROSS-OVER. BRAND: HYDRAFORCE.
Stock Level:
Contact us for stock availability
Price:
$222.00
