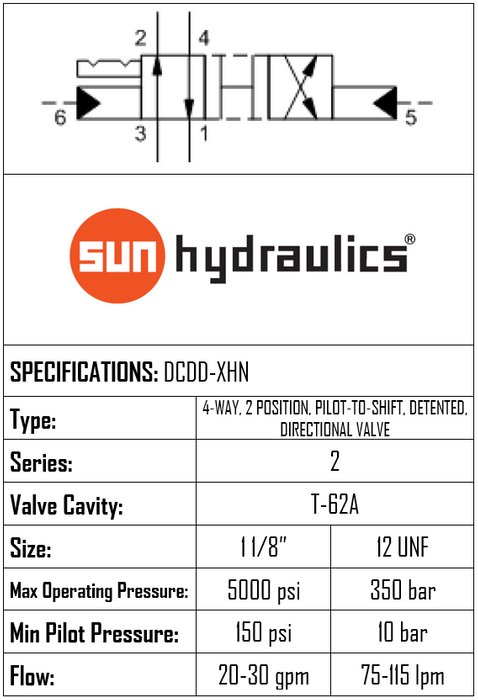

DCDD-XHN • SOLENOID VALVE 4-WAY, 2-POSITION, PILOT-TO-SHIFT, DETENTED, DIRECTIONAL TYPE • T-62A • 345 BAR • 115 LPM (75–113 LPM) • SUN

Description

THIS 4-WAY, 2-POSITION, PILOT-TO-SHIFT, DETENTED, DIRECTIONAL SOLENOID VALVE FEATURES A T-62A CAVITY, OPERATES UP TO 345 BAR, AND HANDLES FLOWS BETWEEN 75 AND 113 LPM. IT HAS AN H SPOOL TYPE WHICH ALLOWS FLOW OVER ALL PORTS IN NUTURAL POSITION, WHEN THE PILOT PRESSURE AT PORT 5 RISES, THE VALVE SHIFTS TO ALLOW FLOW FROM 2 TO 1 AND FROM 3 TO 4. WHEN THE PILOT PRESSURE AT PORT 6 RISES, THE VALVE SHIFTS TO ALLOW FLOW FROM 3 TO 2 AND FROM 4 TO 1. BRAND: SUN.
