EMDV-12-N-4B-0-00 • SOLENOID VALVE 4/2, DIRECT ACTING, SPOOL TYPE • C-12-4 • 350 BAR • 60 LPM • BUCHER
EMDV-12-N-4B-0-00
Description

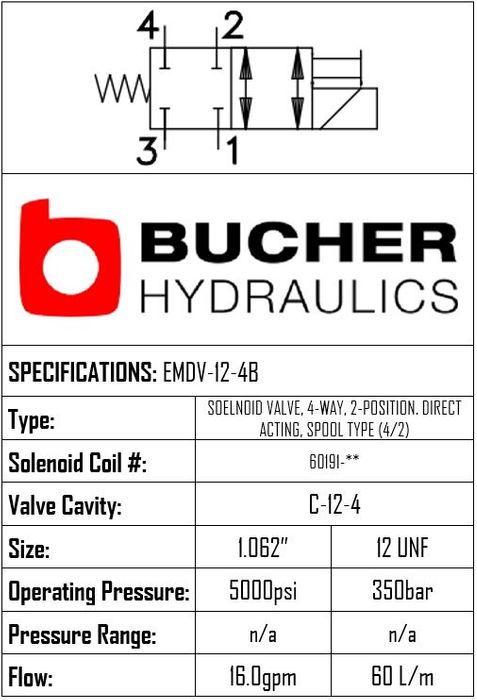

THIS 4/2, DIRECT ACTING, SPOOL TYPE SOLENOID VALVE FEATURES A C-12-4 CAVITY, OPERATES UP TO 350 BAR, AND HANDLES 60 LPM. WHEN SOLENOID COIL IS ENERGIZED, THE SPOOL IN THIS VALVE NO FLOW BETWEEN PORTS 1 AND 2, PORTS 3 AND 4. WHEN SOLENOID COIL IS DE-ENERGIZED, THIS VALVE ALLOWS IS SHIFTED AND ALLOWS FLOW BETWEEN PORTS 1 AND 2, PORTS 3 AND 4. MANUAL OPERATOR STANDARD: PUSH IN AND HOLD A SMALL PLUNGER ON TOP OF THE VALVE WITH A SCREWDRIVER OR A SIMILAR PLUNGER SMALLER THAN .188" DIA. BRAND: BUCHER.
Stock Level:
Contact us for stock availability
Price:
$539.70
