EMDV-12-N-4A-0-00 • SOLENOID VALVE 4/2, DIRECT ACTING, SPOOL TYPE • C-12-4 • 350 BAR • 60 LPM • BUCHER
EMDV-12-N-4A-0-00
Description

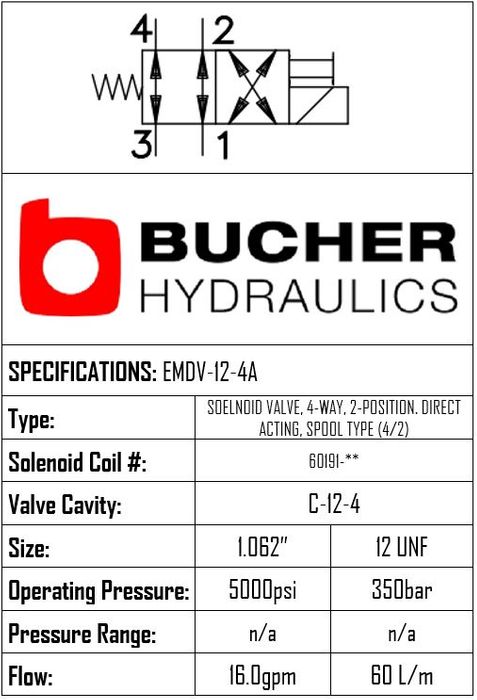

THIS 4/2, DIRECT ACTING, SPOOL TYPE SOLENOID VALVE FEATURES A C-12-4 CAVITY, OPERATES AT 350 BAR, AND FLOWS 60 LPM. WHEN SOLENOID COIL IS DE-ENERGIZED, THIS VALVE ALLOWS FLOW BETWEEN PORTS 1 AND 2, PORTS 3 AND 4. WHEN SOLENOID COIL IS ENERGIZED, THE SPOOL IN THIS VALVE IS SHIFTED AND ALLOWS FLOW BETWEEN PORTS 1 AND 4, PORTS 2 AND 3. "THIS VALVE SHIFTS IN A CLOSE CENTRE POSITION". MANUAL OPERATOR STANDARD: PUSH IN AND HOLD A SMALL PLUNGER ON TOP OF THE VALVE WITH A SCREWDRIVER OR A SIMILAR PLUNGER SMALLER THAN .188" DIA. BRAND: BUCHER.
Stock Level:
Contact us for stock availability
Price:
$524.46
