EMDV-10-N-4A-0-00 • SOLENOID VALVE 4/2 DIRECT ACTING, SPOOL TYPE • C-10-4 • 350 BAR • 30 LPM • BUCHER
EMDV-10-N-4A-0-00
Description

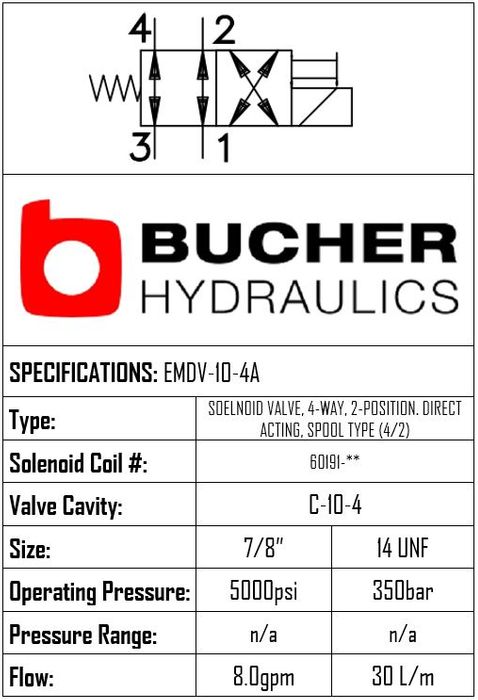

THIS 4/2 , DIRECT ACTING, SPOOL TYPE SOLENOID VALVE FEATURES A C-10-4 CAVITY, OPERATES AT 350 BAR, AND HANDLES A FLOW CAPACITY OF 30 LPM. WHEN SOLENOID COIL IS DE-ENERGIZED, THIS VALVE ALLOWS FLOW BETWEEN PORTS 1 AND 2, PORTS 3 AND 4. WHEN SOLENOID COIL IS ENERGIZED, THE SPOOL IN THIS VALVE IS SHIFTED AND ALLOWS FLOW BETWEEN PORTS 1 AND 4, PORTS 2 AND 3. "THIS VALVE SHIFTS IN A CLOSE CENTRE POSITION". MANUAL OPERATOR STANDARD: PUSH IN AND HOLD A SMALL PLUNGER ON TOP OF THE VALVE WITH A SCREWDRIVER OR A SIMILAR PLUNGER SMALLER THAN. 188" DIA. BRAND: BUCHER.
Stock Level:
In Stock
Price:
$396.33
