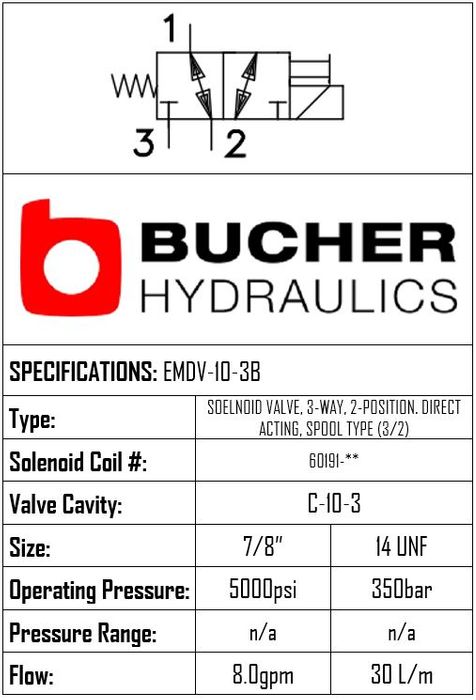

EMDV-10-N-3B-0-00 • SOLENOID VALVE 3-WAY, 2-POSITION, DIRECT ACTING, SPOOL TYPE • C-10-3 • 350 BAR • 30 LPM • BUCHER
EMDV-10-N-3B-0-00
Description
THIS 3/2 SPOOL TYPE SOLENOID VALVE FEATURES A C-10-3 CAVITY, OPERATES AT 350 BAR, AND HANDLES A FLOW CAPACITY OF 30 LPM. WHEN SOLENOID COIL IS DE-ENERGIZED, THIS VALVE ALLOWS FLOW BETWEEN PORTS 1 AND 2, PORT 3 IS BLOCKED. WHEN SOLENOID COIL IS ENERGIZED, THE SPOOL IN THIS VALVE IS SHIFTED AND ALLOWS FLOW BETWEEN PORTS 1 AND 3 AND PORT 2 IS BLOCKED. THIS VALVE SHIFTS IN A CLOSED POSITION. MANUAL OPERATOR STANDARD: PUSH IN AND HOLD A SMALL PLUNGER ON TOP OF THE VALVE WITH A SCREWDRIVER OR A SIMILAR PLUNGER SMALLER THAN .188" DIA. BRAND: BUCHER.
Stock Level:
Contact us for stock availability
Price:
$306.42
