EMDV-10-N-3A-0-00 • SOLENOID VALVE 3-WAY, 2-POSITION, DIRECT ACTING, SPOOL TYPE • C-10-3 • 350 BAR • 30 LPM • BUCHER
EMDV-10-N-3A-0-00
Description

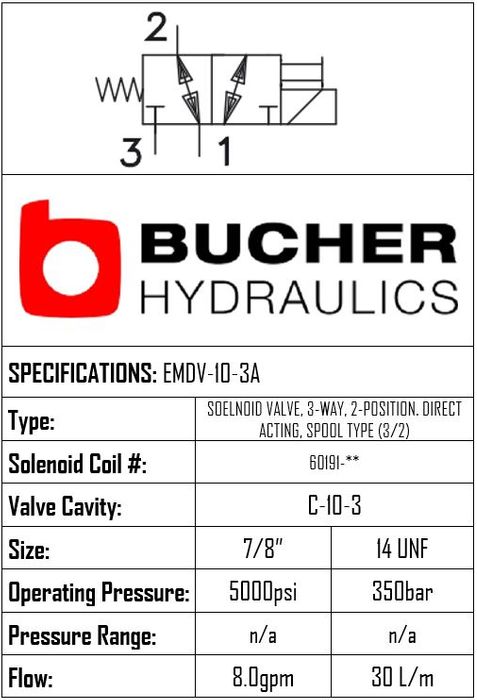

THIS 3-WAY, 2-POSITION, DIRECT ACTING, SPOOL TYPE SOLENOID VALVE FEATURES A C-10-3 CAVITY, OPERATES AT 350 BAR, AND HANDLES A FLOW CAPACITY OF 30 LPM. WHEN SOLENOID COIL IS DE-ENERGIZED, THIS VALVE ALLOWS FLOW BETWEEN PORTS 1 AND 2 AND PORT 3 IS BLOCKED. WHEN SOLENOID COIL IS ENERGIZED, THE SPOOL IN THIS VALVE IS SHIFTED AND ALLOWS FLOW BETWEEN PORTS 2 AND 3 AND PORT 1 IS BLOCKED. THIS VALVE SHIFTS IN A CLOSED POSITION. MANUAL OPERATOR STANDARD: PUSH IN AND HOLD A SMALL PLUNGER ON TOP OF THE VALVE WITH A SCREWDRIVER OR A SIMILAR PLUNGER SMALLER THAN .188" DIA. BRAND: BUCHER.
Stock Level:
In Stock
Price:
$305.03
